Pillar 1: Logs - Your System's Black Box

Centralize, search, and analyze logs from all services in real-time.

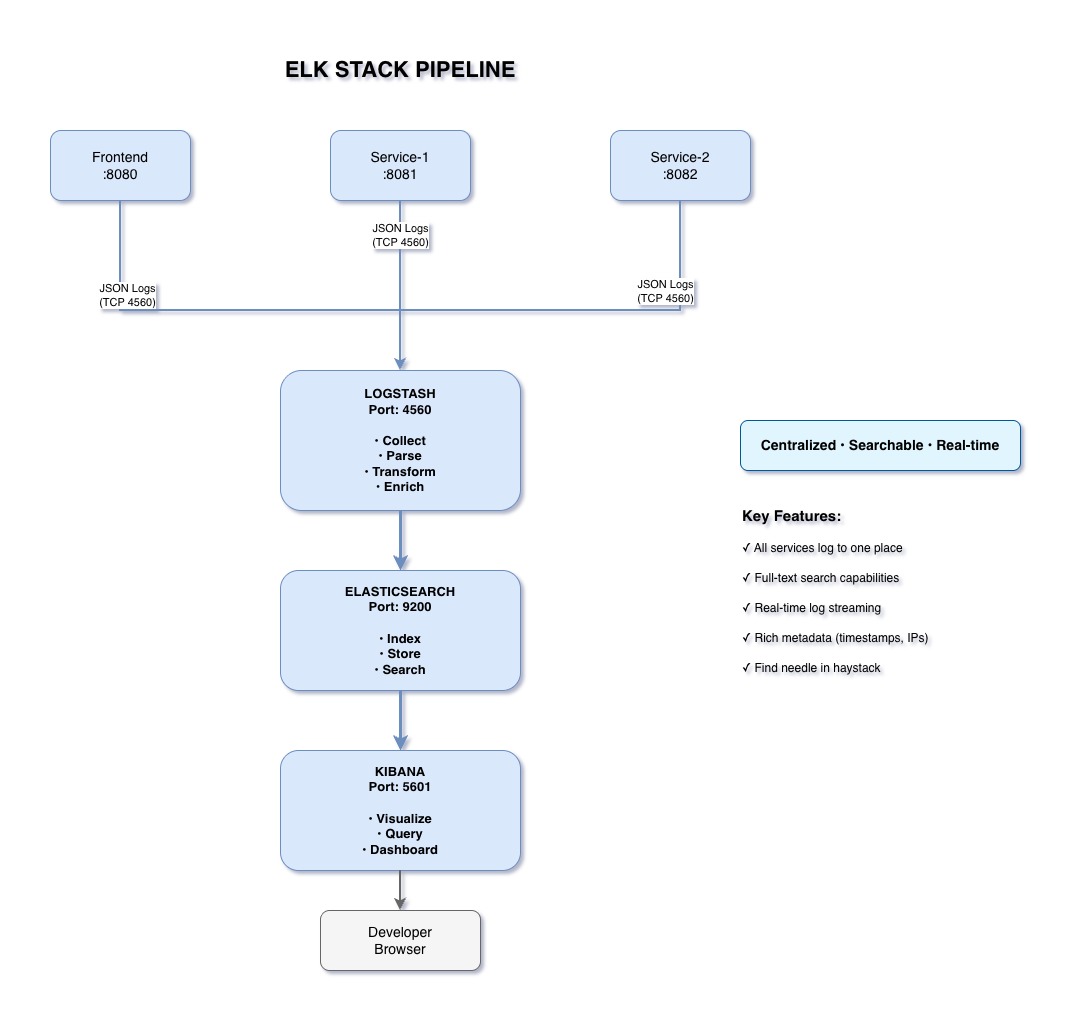

ELK Stack Pipeline Architecture

What is ELK Stack?

ELK is the industry-standard solution for centralized logging, consisting of three powerful open-source tools.

The Three Components

E - Elasticsearch

The Storage Engine

  • Stores and indexes logs
  • Full-text search capability
  • Distributed and scalable
  • Near real-time search
L - Logstash

The Pipeline

  • Collects logs from services
  • Processes and transforms
  • Enriches with metadata
  • Sends to Elasticsearch
K - Kibana

The Interface

  • Visualizes logs
  • Powerful query language
  • Create dashboards
  • Set up alerts

How Logs Flow Through ELK

  1. Services Generate Logs

    Frontend and Backend services log events in JSON format

  2. Logstash Collects

    Services send logs to Logstash via TCP (port 4560)

  3. Logstash Processes

    Parses JSON, adds metadata, enriches with context

  4. Elasticsearch Stores

    Indexes logs for fast searching and retrieval

  5. Kibana Visualizes

    Query, search, and visualize logs in real-time

Why Use ELK Stack?

✅ Centralized

All services log to one place. No more SSH-ing into multiple servers to check logs.

🔍 Searchable

Full-text search across all logs. Find any error, user action, or event instantly.

⚡ Real-Time

See issues as they happen. Near real-time indexing and searching.

📋 Contextual

Rich metadata: timestamps, service names, log levels, user IDs, request IDs.

Our ELK Implementation

Configuration
  • Version: ELK 7.10.2 (stable, production-ready)
  • Log Format: JSON (structured, machine-readable)
  • Transport: TCP over port 4560
  • Services: Frontend + 3 Backend instances
  • Retention: Configurable (default: unlimited in dev)

Our Log Structure

Key Fields in Every Log
  • @timestamp: When the event occurred
  • level: INFO, WARN, ERROR
  • logger_name: Which class logged it
  • message: The actual log message
  • service_alias: Which service (person-front, person-service-client)
  • request_id: Correlation ID for distributed tracing
  • user_ip: User's IP address
  • http_method: GET, POST, etc.
  • request_uri: Which endpoint was called

Key Takeaways

  • ELK provides centralized logging for distributed systems
  • All services send JSON logs to Logstash via TCP
  • Elasticsearch stores and indexes logs for fast searching
  • Kibana enables powerful querying and visualization
  • Real-time visibility into system events across all services
